Premium Rutile Coated Electrodes
Low Spatter & Low Smoke Output
Rutile Coated Mild Steel Electrodes
SkyArc is a Rutile coated general purpose all position quality mild steel electrodes. Engineered to support heavy structural and welding operations while keeping spatter and smoke at a minimum level.
Generally used for mild steel structures and tanks,truck frames and bodies, ships,pipelines,bridges,etc suitable for joining steels like of astma 283 (P.NO.D & others).
A Rutile Coated
SkyArc is a Rutile coated general purpose all position quality mild steel electrodes.

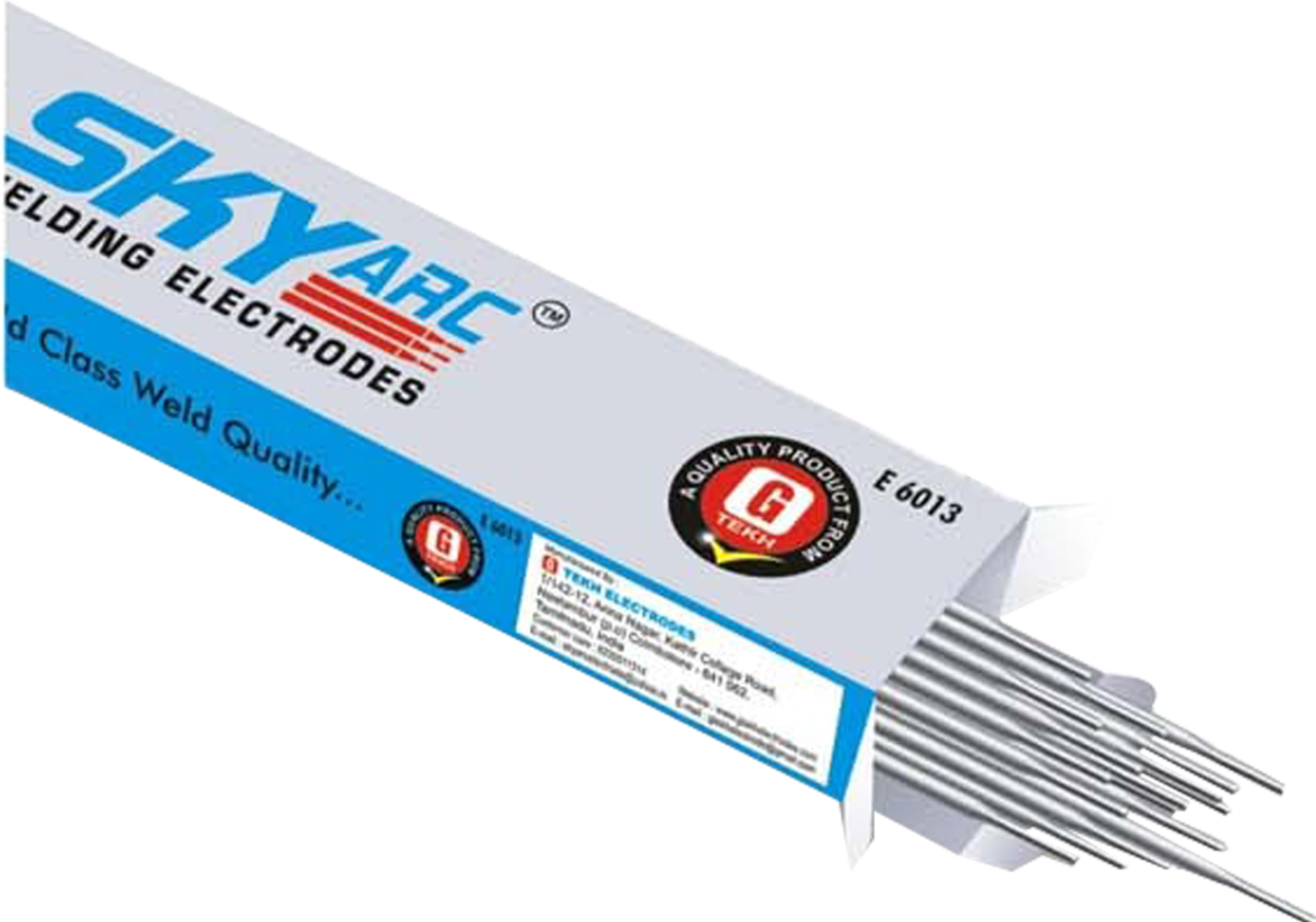

E6013
ER4211
F4322R312
E422R11
F, 11, V-DOWN, V-UP & OH
Generally used for mild steel structures and tanks,truck frames and bodies, ships,pipelines,bridges,etc suitable for joining steels like of astma 283 (P.NO.D & others)
| Weld Metal Chemical and Mechanical Properties | Size (mm) | Current Range (Amps) | Packing Data | |||
|---|---|---|---|---|---|---|
| C | 0.10 max | UTS | 410-540 MPa | 2.50 | 60-90 | 135 pes |
| Mn | 0.35-0.60 | YS | 330 MPa (min) | 3.15 | 90-125 | 90 pes |
| Si | 0.30 max | EL | 20-28 | 4.0 | 130-170 | 60 pes |
| S | 0.030 max | RA | 50 min | 5.0 | 180-210 | 40 pes |
| P | 0.030 max | CNV at 0C | 47 J (min) | Typical current value: D+ -A50 | ||
Electrode must be redried at 100 - 110°C for 1/2 hour prior to use.
